BASIC NOTES

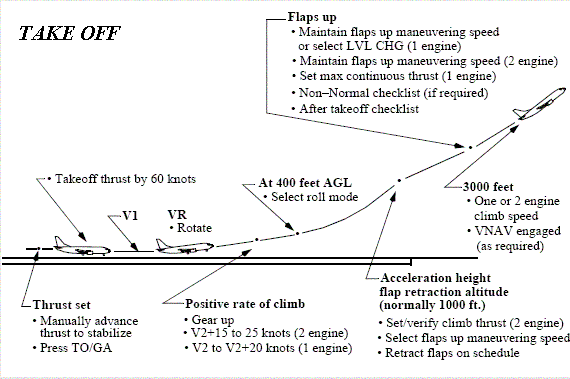

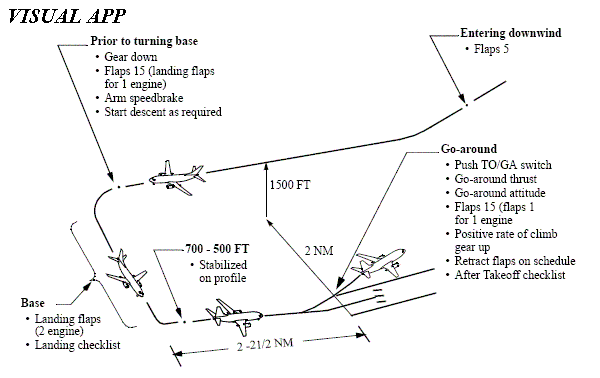

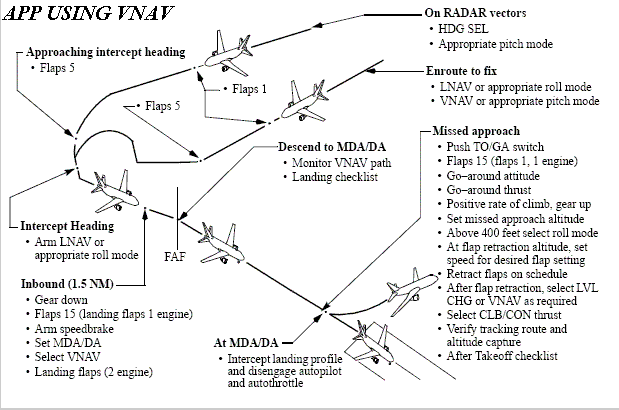

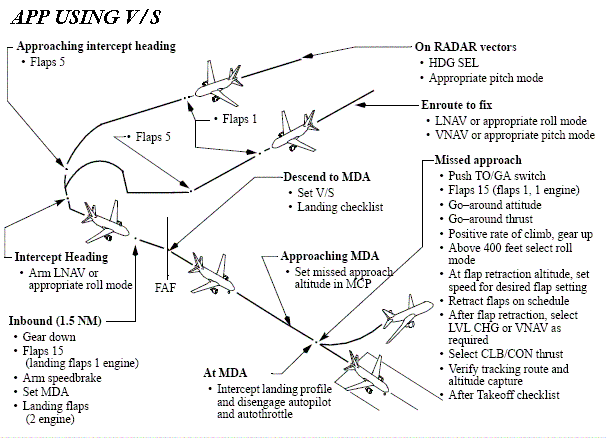

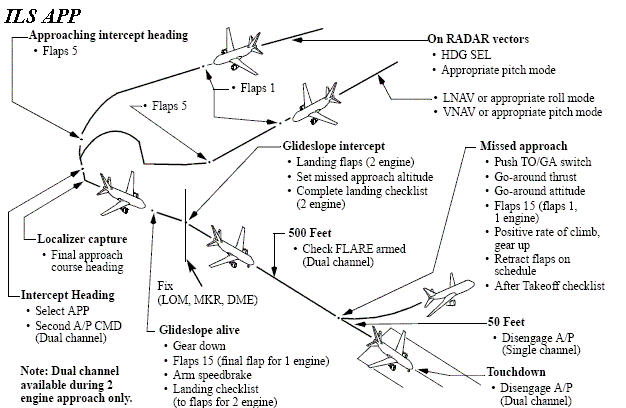

FLIGHT PATTERNS
|
|
|
|
|
AIRPLANE GENERAL
Operating Limitations
|
Runway slope |
+/- 2% |
|
Maximum Takeoff and Landing Tailwind Component |
10 knots |
|
Maximum speeds |
Observe Vmo pointer and gear/ |
|
|
flap placards |
|
Turbulent airspeed |
280 KIAS/.73M |
|
Maximum flight operational latitude |
73Ξ’Β° North and 60Ξ’Β° South |
|
Maximum Operating Altitude |
37,000 feet |
|
Maximum Takeoff and Landing Altitude |
8,400 feet |
|
Maximum Taxi Weight |
61,461 kgs |
|
Maximum Takeoff Weight |
61,234 kgs (1) |
|
Maximum Landing Weight |
51,709 kgs (2) |
|
Maximum Zero Fuel Weight |
48,307 kgs |
|
|
Maximum time limit for takeoff thrust |
5 minutes |
|
Maximum Nl RPM |
106% |
|
Maximum N2 RPM |
105% |
|
Maximum TakeoffEGT |
930 C |
|
Maximum Continuous EGT |
895 C |
|
Maximum Start EGT |
725 C |
|
Minimum Oil Pressure |
13 psi |
|
Maximum Oil Temperature |
165 C maximum |
|
|
160 C - 165 C |
|
|
allowable for 15 |
|
|
minutes |
|
|
160 C maximum |
|
|
continuous |
Takeoff Flap Retraction Speed Schedule
|
T/O |
SELECT |
At & below |
Above: |
Above |
|
FLAPS |
FLAPS |
53,070 Kgs |
53,070 Kgs |
62,823 Kgs |
|
|
|
|
up to |
|
|
|
|
|
62,823 Kgs |
|
|
15 |
5 |
V2 + 15 |
V2 + 15 |
V2 + 15 |
|
|
1 |
170/F |
180/F |
190/F |
|
|
UP |
190/F |
200/F |
210/F |
|
5 |
1 |
V2 + 15 |
V2 + 15 |
V2 + 15 |
|
|
UP |
190/F |
200/F |
210/F |
|
1 |
UP |
190/F |
200/F |
210/F |
|
(737-300 |
|
|
|
|
|
only) |
|
|
|
|
|
|
FLAP MANEUVERING SCHEDULE |
|
|
FLAP |
AT & BELOW |
ABOVE 53,070 |
ABOVE 62,823 |
|
POSITION |
53,070 KGS |
KGS |
UP |
TO |
KGS |
|
|
|
62,823 KGS |
|
|
|
FLAPS UP |
210 |
220 |
|
|
230 |
|
FLAPS 1 |
190 |
200 |
|
|
210 |
|
FLAPS 5 |
180 |
190 |
|
|
200 |
|
FLAPS 10 |
170 |
180 |
|
|
190 |
|
FLAPS 15 |
150 |
160 |
|
|
170 |
|
FLAPS 25 |
140 |
150 |
|
|
160 |
|
|
